Hello Radxa Team,
Unfortunately today a disaster occurred while handling the board.

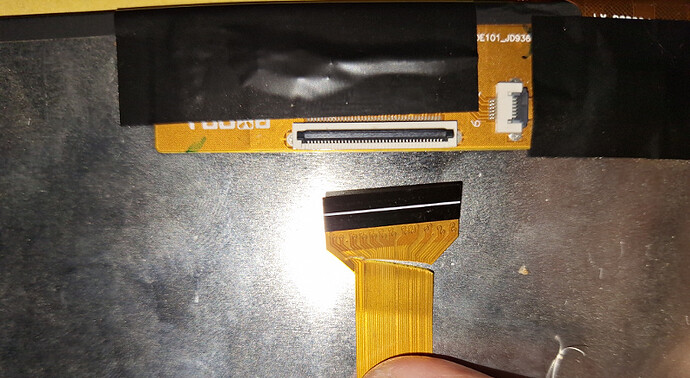

The FPC cable was damaged.
Can you please provide a link to order a new one or how i can replace it?
Rock 5B - replace FPC cable [ RADXA Display 10 FHD ]
The Radxa display retail package ships with two this FPC cables. I think the display you got is an engineering sample from us? We will just ship a replacement cable to you.
1 Like
Are there any longer or alternative orientation FPC cables for the Display 8/10 HD LCD panels? I am trying to mount my Rock5B to the back side of the LCD display, with the NVME side (bottom of the Rock5B) facing away from the back of the LCD. The current retail FPC cable is too short to properly accommodate this orientation. I attempted to orient and connect it in this way, but it caused too much strain on the cable, which shorted out the cable and blew up the Schottky barrier diode in circuit. See my post: Rock5B/Display 8HD: Magic smoke from MIPI ribbon connector, help identify burned part
Any help sourcing a longer alternate cable would be appreciated. Thank you!
